Effortless Custom Navigation Implementation with Jetpack Compose: A Beginner’s Guide

Ricardo Se.

For small app’s sometimes is better to write a custom navigation instead of using the oficial navigation library.

This guide helps you achieve three essential functions:

  • A navigation drawer: this is the left menu that appears when you swipe your app.
  • A scaffold: this is the basic structure of your app which contains top and bottom bar
  • Keep track of current and previous screen: we are going to add the events to change the current screen and keep track the previous screen

Navigation drawer

First lets create an object to keep the identifier of the screens

object Screens {
    val ProfileScreen = "ProfileScreen"
    val SettingsScreen = "SettingScreen"
    val UserScreen = "UserScreen"
}

We want a function that returns the name of the screen

fun screenName(screen: String): String {
    return when (screen) {
        Screens.ProfileScreen -> "Profile"
        Screens.SettingsScreen -> "Settings"
        Screens.UserScreen -> "User"
        else -> ""
    }
}

With this composable we create the drawer item

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun DrawerItem(screen: String) {
    NavigationDrawerItem(

        label = { Text(screenName(screen)) },
        onClick = {

        },
        selected = false
    )
}

Then we are going to create the drawer and we add each drawer item to the drawer

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationDrawer() {
    val drawerState = rememberDrawerState(initialValue = DrawerValue.Open)
    ModalNavigationDrawer(
        drawerState = drawerState,
        drawerContent = {
            ModalDrawerSheet(modifier = Modifier.requiredWidth(300.dp)) {

                DrawerItem(Screens.UserScreen)
                DrawerItem(Screens.ProfileScreen)
                DrawerItem(Screens.SettingsScreen)

            }
        },
    ) {

    }
}

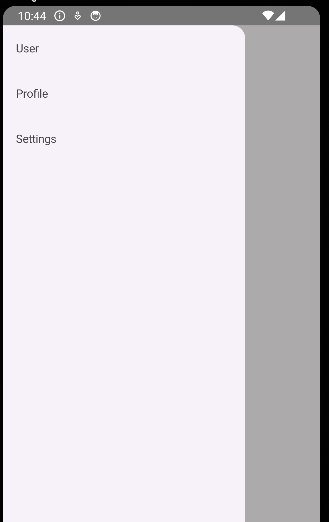

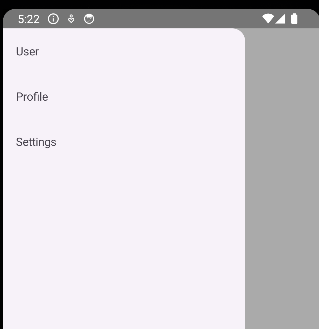

Looks like this

Scaffold

Lets create our screens and a main screen.

@Composable
fun ProfileScreen() {
    Text(screenName(Screens.ProfileScreen))
}

@Composable
fun SettingsScreen() {
    Text(screenName(Screens.SettingsScreen))
}

@Composable
fun UserScreen() {
    Text(screenName(Screens.UserScreen))
}

Our main screen will be very simple. It will display the current screen.

@Composable
fun MainScreen(currentScreen: String) {
    if (currentScreen == Screens.ProfileScreen) {
        ProfileScreen()
        return
    }

    if (currentScreen == Screens.SettingsScreen) {
        SettingsScreen()
        return
    }

    if (currentScreen == Screens.UserScreen) {
        UserScreen()
        return
    }
}

We add the main screen to the scaffold an we add a variable state to keep track of the current screen.

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Composable
fun NavigationScaffold() {
    val currentScreen by remember { mutableStateOf(Screens.UserScreen)}

    Scaffold(
    ) { innerPadding ->
        Column(
            modifier = Modifier.padding(innerPadding)
        ) {
            // Here is the main screen
            MainScreen(currentScreen)
        }
    }
}

Now we are going to add the drawer and the Scaffold. First lets add a parameter in the drawer to pass the scaffold.

fun NavigationDrawer(scaffoldContent:@Composable () -> Unit){
  // Ommited
}

And we call it inside of the drawer content

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationDrawer(scaffoldContent: () -> Unit) {
    val drawerState = rememberDrawerState(initialValue = DrawerValue.Open)
    ModalNavigationDrawer(
        drawerState = drawerState,
        drawerContent = {
            ModalDrawerSheet(modifier = Modifier.requiredWidth(300.dp)) {
                DrawerItem(Screens.UserScreen)
                DrawerItem(Screens.ProfileScreen)
                DrawerItem(Screens.SettingsScreen)
            }
        },
    ) {
        // Here is the scaffold
        scaffoldContent()
    }
}

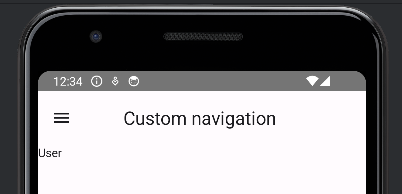

It looks like this until now

Keep track of current and previous screen

Lets add the event when the drawer item is clicked. First we add the click event on the DrawerItem

fun DrawerItem(screen: String, onClick: () -> Unit) {
  // Ommited
}
@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun DrawerItem(screen: String, onClick: () -> Unit) {
    NavigationDrawerItem(

        label = { Text(screenName(screen)) },
        onClick = {
            // Click event
            onClick()
        },
        selected = false
    )
}

Then we add a screen changed event in the NavigationDrawer

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationDrawer(
    scaffoldContent: @Composable () -> Unit,
    onScreenChanged: (String) -> Unit
) {
  // Ommited
}
@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationDrawer(
    scaffoldContent: @Composable () -> Unit,
    onScreenChanged: (String) -> Unit
) {
    val drawerState = rememberDrawerState(initialValue = DrawerValue.Open)
    val scope = rememberCoroutineScope()

    ModalNavigationDrawer(
        drawerState = drawerState,
        drawerContent = {
            ModalDrawerSheet(modifier = Modifier.requiredWidth(300.dp)) {

                // OnScreenChanged events
                DrawerItem(
                    screen = Screens.UserScreen,
                    onClick = {
                        onScreenChanged(Screens.UserScreen)
                        scope.launch { drawerState.close() }
                    }

                )
                DrawerItem(
                    Screens.ProfileScreen,
                    onClick = {
                        onScreenChanged(Screens.ProfileScreen)
                        scope.launch { drawerState.close() }
                    }
                )
                DrawerItem(
                    Screens.SettingsScreen,
                    onClick = {
                        onScreenChanged(Screens.SettingsScreen)
                        scope.launch { drawerState.close() }
                    }
                )
            }
        },
    ) {
        scaffoldContent()
    }
}

And we use the event like this:

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun BasicCustomNavigation() {
    var currentScreen by remember { mutableStateOf(Screens.UserScreen) }

    NavigationDrawer(
        scaffoldContent = {
            NavigationScaffold(currentScreen)
        },
        onScreenChanged = {
            currentScreen = it
        }

    )
}

Now lets add the functionality to go to previous screen. First we are going to create a top bar:

  1. By default the top bar will show a button to open the menu (drawer)
  2. If there is a previous page the top bar will show a button to go back

Lets create the open menu button and the go back button

@Composable
fun GoBackButton (onClick: () -> Unit) {
    IconButton(onClick = { onClick() }) {
        Icon(
            imageVector = Icons.Filled.ArrowBack,
            contentDescription = "Back",
        )
    }
}

@Composable
fun OpenMenuButton(onClick: () -> Unit) {
    IconButton(onClick = { onClick() }) {
        Icon(
            imageVector = Icons.Filled.Menu,
            contentDescription = "Menu",
        )
    }
}

And we add the buttons in the top bar

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun TopBar(
    showPreviousButton: Boolean,
    onBackPressed: () -> Unit,
    onOpenDrawerPressed: () -> Unit
) {
    CenterAlignedTopAppBar(
        title = { Text("Custom navigation ") },
        navigationIcon = {
            if (showPreviousButton) {
                GoBackButton(onClick = { onBackPressed() })
            } else {
                OpenMenuButton (onClick = { onOpenDrawerPressed() })
            }
        }
    )
}

Now lets add the top bar and implement the open menu and go back events

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationScaffold(
    currentScreen: String,
    previousScreen: String,
    onBackPressed: () -> Unit,
    onOpenDrawerPressed: () -> Unit
) {
    Scaffold(
        // Here is the top bar
        topBar = {
            TopBar(
                showPreviousButton = previousScreen.isNotEmpty(),
                onBackPressed = { onBackPressed() },
                onOpenDrawerPressed = { onOpenDrawerPressed()}
            )
        }

    ) { innerPadding ->
        Column(
            modifier = Modifier.padding(innerPadding)
        ) {
            MainScreen(currentScreen)
        }
    }
}

And this is our main composable

@OptIn(ExperimentalMaterial3Api::class)
@Composable
@Preview
fun BasicCustomNavigation() {
    val scope = rememberCoroutineScope()
    val drawerState = rememberDrawerState(initialValue = DrawerValue.Closed)
    var currentScreen by remember { mutableStateOf(Screens.UserScreen) }
    var previousScreen by remember { mutableStateOf("") }

    NavigationDrawer(
        drawerState = drawerState,
        scaffoldContent = {
            NavigationScaffold(
                currentScreen = currentScreen,
                previousScreen = previousScreen,
                onBackPressed = {
                    currentScreen = previousScreen
                    previousScreen = ""
                },
                onOpenDrawerPressed = {
                    scope.launch { drawerState.open() }
                }
            )
        },
        onScreenChanged = {
            previousScreen = currentScreen
            currentScreen = it

        }
    )
}

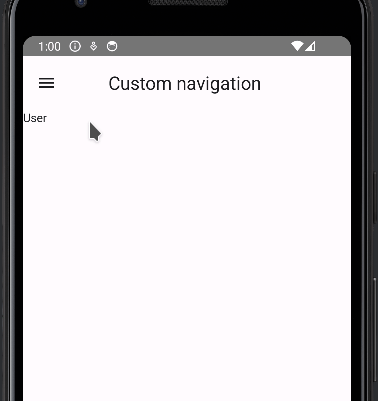

I added some colors and this is the result

This is the final code



class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            BasicCustomNavigationTheme {
                // A surface container using the 'background' color from the theme
                Surface(
                    modifier = Modifier.fillMaxSize(),
                    color = MaterialTheme.colorScheme.background
                ) {
                    BasicCustomNavigation()

                }
            }
        }
    }
}

object Screens {
    val ProfileScreen = "ProfileScreen"
    val SettingsScreen = "SettingScreen"
    val UserScreen = "UserScreen"
}

fun screenName(screen: String): String {
    return when (screen) {
        Screens.ProfileScreen -> "Profile"
        Screens.SettingsScreen -> "Settings"
        Screens.UserScreen -> "User"
        else -> ""
    }
}

@Composable
fun Screen(title: String) {
    Column(
        modifier = Modifier
            .background(color = MaterialTheme.colorScheme.onPrimary)
            .padding(20.dp)
            .fillMaxWidth(),
        horizontalAlignment = Alignment.CenterHorizontally

    ) {
        Text(
            text = title,
            fontWeight = FontWeight.Bold,
            color = MaterialTheme.colorScheme.primary
        )
    }
}

@Composable
fun ProfileScreen() {
    Screen(screenName(Screens.ProfileScreen))
}

@Composable
fun SettingsScreen() {
    Screen(screenName(Screens.SettingsScreen))
}

@Composable
fun UserScreen() {
    Screen(screenName(Screens.UserScreen))
}

@Composable
fun MainScreen(currentScreen: String) {
    if (currentScreen == Screens.ProfileScreen) {
        ProfileScreen()
        return
    }

    if (currentScreen == Screens.SettingsScreen) {
        SettingsScreen()
        return
    }

    if (currentScreen == Screens.UserScreen) {
        UserScreen()
        return
    }
}


@OptIn(ExperimentalMaterial3Api::class)
@Composable
@Preview
fun BasicCustomNavigation() {
    val scope = rememberCoroutineScope()
    val drawerState = rememberDrawerState(initialValue = DrawerValue.Closed)
    var currentScreen by remember { mutableStateOf(Screens.UserScreen) }
    var previousScreen by remember { mutableStateOf("") }

    NavigationDrawer(
        drawerState = drawerState,
        scaffoldContent = {
            NavigationScaffold(
                currentScreen = currentScreen,
                previousScreen = previousScreen,
                onBackPressed = {
                    currentScreen = previousScreen
                    previousScreen = ""
                },
                onOpenDrawerPressed = {
                    scope.launch { drawerState.open() }
                }
            )
        },
        onScreenChanged = {
            previousScreen = currentScreen
            currentScreen = it

        }
    )
}

@Composable
fun GoBackButton(onClick: () -> Unit) {
    IconButton(onClick = { onClick() }) {
        Icon(
            imageVector = Icons.Filled.ArrowBack,
            contentDescription = "Back",
            tint = MaterialTheme.colorScheme.onPrimary
        )
    }
}

@Composable
fun OpenMenuButton(onClick: () -> Unit) {
    IconButton(onClick = { onClick() }) {
        Icon(
            imageVector = Icons.Filled.Menu,
            contentDescription = "Menu",
            tint = MaterialTheme.colorScheme.onPrimary
        )
    }
}


@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun TopBar(
    showPreviousButton: Boolean,
    onBackPressed: () -> Unit,
    onOpenDrawerPressed: () -> Unit
) {
    CenterAlignedTopAppBar(
        colors = TopAppBarDefaults.centerAlignedTopAppBarColors(
            containerColor = MaterialTheme.colorScheme.primary,
            titleContentColor = MaterialTheme.colorScheme.onPrimary,
        ),
        title = { Text("Custom navigation ") },
        navigationIcon = {
            if (showPreviousButton) {
                GoBackButton(onClick = { onBackPressed() })
            } else {
                OpenMenuButton(onClick = { onOpenDrawerPressed() })
            }

        }
    )
}

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationScaffold(
    currentScreen: String,
    previousScreen: String,
    onBackPressed: () -> Unit,
    onOpenDrawerPressed: () -> Unit
) {
    Scaffold(
        // Here is the top bar
        topBar = {
            TopBar(
                showPreviousButton = previousScreen.isNotEmpty(),
                onBackPressed = { onBackPressed() },
                onOpenDrawerPressed = { onOpenDrawerPressed() }
            )
        }

    ) { innerPadding ->
        Column(
            modifier = Modifier.padding(innerPadding)
        ) {
            MainScreen(currentScreen)
        }
    }
}

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun NavigationDrawer(
    drawerState: DrawerState,
    scaffoldContent: @Composable () -> Unit,
    onScreenChanged: (String) -> Unit
) {

    val scope = rememberCoroutineScope()

    ModalNavigationDrawer(
        drawerState = drawerState,
        drawerContent = {
            ModalDrawerSheet(modifier = Modifier.requiredWidth(300.dp)) {

                // OnScreenChanged events
                DrawerItem(
                    screen = Screens.UserScreen,
                    icon = {Icon(Icons.Default.AccountCircle, "User")}

                ) {
                    onScreenChanged(Screens.UserScreen)
                    scope.launch { drawerState.close() }
                }

                Divider()

                DrawerItem(
                    Screens.ProfileScreen,
                    icon = {Icon(Icons.Default.Face, "Profile")}
                ) {
                    onScreenChanged(Screens.ProfileScreen)
                    scope.launch { drawerState.close() }
                }

                Divider()

                DrawerItem(
                    Screens.SettingsScreen,
                    icon = {Icon(Icons.Default.Settings, "User")}
                ) {
                    onScreenChanged(Screens.SettingsScreen)
                    scope.launch { drawerState.close() }
                }
                Divider()
            }
        },
    ) {
        scaffoldContent()
    }
}


@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun DrawerItem(screen: String, icon: @Composable () -> Unit, onClick: () -> Unit) {
    NavigationDrawerItem(

        label = { Text(screenName(screen)) },
        onClick = {
            // Click event
            onClick()
        },
        icon = { icon() },
        selected = false
    )
}

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *
