We want a basic composable that allows the user to capture: year, month and day of a date.
Our DateField will have two parameters: the value and the changed event
fun CustomDateField(
value: LocalDate,
onValueChanged: (LocalDate) -> Unit
) {
}
Now we are going to use a Row to place three text fields
@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun CustomDateField(
value: LocalDate,
onValueChanged: (LocalDate) -> Unit
) {
Row() {
OutlinedTextField(
label = { Text("Year")},
modifier = Modifier.fillMaxWidth(0.5f),
value = value.year.toString(),
onValueChange = {
}
)
OutlinedTextField(
label = { Text("Month")},
modifier = Modifier.fillMaxWidth(0.5f),
value = value.monthValue.toString(),
onValueChange = {
}
)
OutlinedTextField(
label = { Text("Day")},
modifier = Modifier.fillMaxWidth(1f),
value = value.dayOfMonth.toString(),
onValueChange = {
}
)
}
}
Lets create a preview to see how it looks like
@Preview
@Composable
fun CustomDateField() {
val date = remember { mutableStateOf(LocalDate.now()) }
AppTheme {
Surface {
CustomDateField(
value = date.value,
onValueChanged = {
date.value = it
})
}
}
}

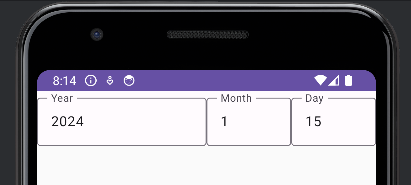

Looks like this
Now lets implement de events when the date changes. We are going to use a function that returns null when the date is not valid, otherwise it will the return the date.
fun toLocalDateOrNull(year: String, month: String, day: String): LocalDate? {
if (!isInteger(year) ||
!isInteger(month) ||
!isInteger(day)
) {
return null
}
try {
return LocalDate.of(year.toInt(), month.toInt(), day.toInt())
} catch (ex: DateTimeException) {
return null
}
}
And we are going to create some functions to change the date.
fun changeYearOrNull(year: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
year,
currentDate.monthValue.toString(),
currentDate.dayOfMonth.toString()
)
}
fun changeMonthOrNull(month: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
currentDate.year.toString(),
month,
currentDate.dayOfMonth.toString()
)
}
fun changeDayOrNUll(day: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
currentDate.year.toString(),
currentDate.monthValue.toString(),
day
)
}
And we implement each event
@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun CustomDateField(
value: LocalDate,
onValueChanged: (LocalDate) -> Unit
) {
Row() {
OutlinedTextField(
label = { Text("Year") },
modifier = Modifier.fillMaxWidth(0.5f),
value = value.year.toString(),
onValueChange = {
// Change year
val newDate = changeYearOrNull(it, value)
if (newDate != null) {
onValueChanged(newDate)
}
}
)
OutlinedTextField(
label = { Text("Month") },
modifier = Modifier.fillMaxWidth(0.5f),
value = value.monthValue.toString(),
onValueChange = {
// Change month
val newDate = changeMonthOrNull(it, value)
if (newDate != null) {
onValueChanged(newDate)
}
}
)
OutlinedTextField(
label = { Text("Day") },
modifier = Modifier.fillMaxWidth(1f),
value = value.dayOfMonth.toString(),
onValueChange = {
// Change Day
val newDate = changeDayOrNUll(it, value)
if (newDate != null) {
onValueChanged(newDate)
}
}
)
}
}
To facilitate that the user type the date, we are going to select the values when the field has focus. We add an state to control the selection
val selectionYear = remember { mutableStateOf(TextRange(0, 0)) }
And we add the modifier with onFocusChanged event
OutlinedTextField(
label = { Text("Year") },
modifier = Modifier
.fillMaxWidth(0.5f)
.onFocusChanged {
if (it.hasFocus) {
scope.launch {
selectionYear.value = TextRange(0, value.toString().length)
}
}
},
// Ommited
)

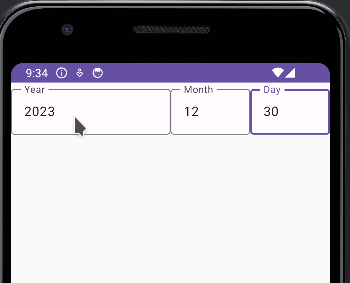

We do the same for month and day fields. It looks like this:

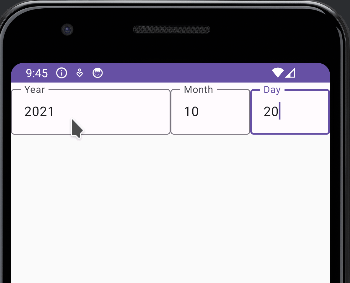

Finally we are going to change the colors when the user type a wrong date. We add a variable state for the error.
val isError = remember { mutableStateOf(false)}
We change the error value when in the onValueChange event
OutlinedTextField(
// Parameters omitted
onValueChange = {
val newDate = changeYearOrNull(it.text, value)
// There is an error
isError.value = newDate == null
if (newDate != null) {
selectionYear.value = it.selection
onValueChanged(newDate)
}
}
)
This is the final code
import android.os.Bundle
import android.util.Log
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.material3.ExperimentalMaterial3Api
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.OutlinedTextField
import androidx.compose.material3.Surface
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberCoroutineScope
import androidx.compose.ui.Modifier
import androidx.compose.ui.focus.onFocusChanged
import androidx.compose.ui.text.TextRange
import androidx.compose.ui.text.input.TextFieldValue
import androidx.compose.ui.tooling.preview.Preview
import com.thisisthetime.customdatefield.ui.theme.AppTheme
import kotlinx.coroutines.launch
import java.time.DateTimeException
import java.time.LocalDate
class MainActivity : ComponentActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
// A surface container using the 'background' color from the theme
Surface(
modifier = Modifier.fillMaxSize(),
color = MaterialTheme.colorScheme.background
) {
}
}
}
}
}
fun isInteger(number: String): Boolean {
return number.toIntOrNull() != null
}
fun toLocalDateOrNull(year: String, month: String, day: String): LocalDate? {
if (!isInteger(year) ||
!isInteger(month) ||
!isInteger(day)
) {
return null
}
try {
return LocalDate.of(year.toInt(), month.toInt(), day.toInt())
} catch (ex: DateTimeException) {
return null
}
}
fun changeYearOrNull(year: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
year,
currentDate.monthValue.toString(),
currentDate.dayOfMonth.toString()
)
}
fun changeMonthOrNull(month: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
currentDate.year.toString(),
month,
currentDate.dayOfMonth.toString()
)
}
fun changeDayOrNUll(day: String, currentDate: LocalDate): LocalDate? {
return toLocalDateOrNull(
currentDate.year.toString(),
currentDate.monthValue.toString(),
day
)
}
@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun CustomDateField(
value: LocalDate,
onValueChanged: (LocalDate) -> Unit
) {
val selectionYear = remember { mutableStateOf(TextRange(0, 0)) }
val selectionMonth = remember { mutableStateOf(TextRange(0, 0)) }
val selectionDay = remember { mutableStateOf(TextRange(0, 0)) }
val scope = rememberCoroutineScope()
val isError = remember { mutableStateOf(false)}
Row() {
OutlinedTextField(
isError = isError.value,
label = { Text("Year") },
modifier = Modifier
.fillMaxWidth(0.5f)
.onFocusChanged {
if (it.hasFocus) {
scope.launch {
selectionYear.value = TextRange(0, value.year.toString().length)
}
}
},
value = TextFieldValue(text = value.year.toString(), selection = selectionYear.value),
onValueChange = {
val newDate = changeYearOrNull(it.text, value)
isError.value = newDate == null
if (newDate != null) {
selectionYear.value = it.selection
onValueChanged(newDate)
}
}
)
OutlinedTextField(
isError = isError.value,
label = { Text("Month") },
modifier = Modifier.fillMaxWidth(0.5f)
.onFocusChanged {
if (it.hasFocus) {
scope.launch {
selectionMonth.value = TextRange(0, value.monthValue.toString().length)
}
}
},
value = TextFieldValue(text = value.monthValue.toString(), selection = selectionMonth.value),
onValueChange = {
// Change month
val newDate = changeMonthOrNull(it.text, value)
isError.value = newDate == null
if (newDate != null) {
selectionMonth.value = it.selection
onValueChanged(newDate)
}
}
)
OutlinedTextField(
isError = isError.value,
label = { Text("Day") },
modifier = Modifier.fillMaxWidth(1f)
.onFocusChanged {
if (it.hasFocus) {
scope.launch {
selectionDay.value = TextRange(0, value.dayOfMonth.toString().length)
}
}
},
value =TextFieldValue(text = value.dayOfMonth.toString(), selection = selectionDay.value),
onValueChange = {
val newDate = changeDayOrNUll(it.text, value)
isError.value = newDate == null
if (newDate != null) {
selectionDay.value = it.selection
onValueChanged(newDate)
}
}
)
}
}
@Preview
@Composable
fun CustomDateField() {
val date = remember { mutableStateOf(LocalDate.now()) }
AppTheme {
Surface {
CustomDateField(
value = date.value,
onValueChanged = {
date.value = it
})
}
}
}
