So you thought design patterns couldn’t be used with composables, huh? Composables are functions. They are not classes or interfaces, so how can we achieve polymorphism?
The principle behind a lot of design patterns is to have a common interface or class that hides implementation. For example, in the image below, Strategy pattern has a common interface and three strategies.
The code that use the strategies never depends of the implementation of each strategy, instead depends of the Strategy Base. This base is a Class or Interface in a POO context, but instead we can use a Composable as a common base.
Lets code an example of a screen navigator. First lets build the Strategy Base
@Composable
fun StrategyBase(strategy: String) {
if (strategy == "strategy1") {
}
if (strategy == "strategy2") {
}
if (strategy == "strategy3") {
}
}
Now lets implement each Strategy
@Composable
fun Strategy1() {
Text("Strategy 1")
}
@Composable
fun Strategy2() {
Text("Strategy 2")
}
@Composable
fun Strategy3() {
Text("Strategy 3")
}
The Strategy Base is modified
@Composable
fun StrategyBase(strategy: String) {
if (strategy == "strategy1") {
Strategy1()
return
}
if (strategy == "strategy2") {
Strategy2()
return
}
if (strategy == "strategy3") {
Strategy3()
return
}
}
Now lets code a client example. We are going to use some buttons to choose each strategy. Notice that the code client does not have references to each strategy, there is only a reference to the strategy base.
@Composable
fun StrategyClient() {
var strategy by remember { mutableStateOf("") }
Column(
modifier = Modifier.fillMaxSize(),
horizontalAlignment = Alignment.CenterHorizontally,
verticalArrangement = Arrangement.Center
) {
Row() {
Button(onClick = { strategy = "strategy1" }) {
Text("Strategy1")
}
Button(onClick = { strategy = "strategy2" }) {
Text("Strategy2")
}
Button(onClick = { strategy = "strategy3" }) {
Text("Strategy3")
}
}
Text("Strategy:")
StrategyBase(strategy)
}
}

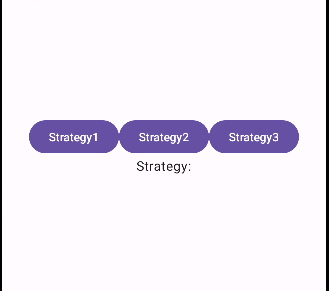

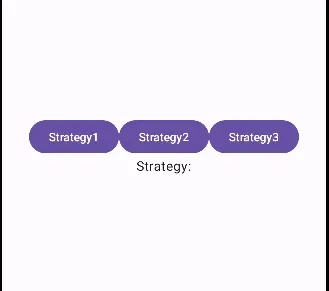

This is the example running
